ELJEN Products List EJ-299-07
very thin foil plastic Scintillator
distributed by

EJ-299-07 is specially invented very thin film plastic scintillator for particle beam timing pick up applications, etc., with the minimum beam energy deposition.

Available in very thin tiles form up to 2.4inch x 2.4inch ( ~60mm x ~60mm) and in a the following thickness range:
maximum thickness: 0.0010" (0.025mm) thickness tolerance: ± 0.0003" (0.0075mm)
minimum thickness: 0.0002" (0.005mm) thickness tolerance: ± 0.0001" (0.0025mm)

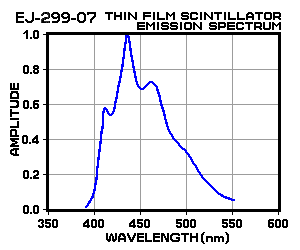

Emission Maximum:    435nm
Scintillation Efficiency:    ~2.7%
     9,000 blue photons per 1 MeV of electron energy
Decay Time:    ~2 ns
Specific Gravity:    1.02

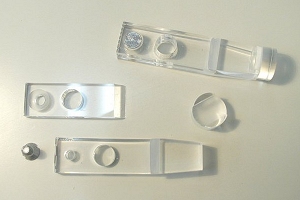

custom made holder / light-guide can be supplied
by particular specification request
G-tech, Corp.    local representative in Japan
365-1, Sayamagahara, Iruma-shi, Saitama 358-0032
Phone# 04-2935-2777 Fax# 04-2935-2778
